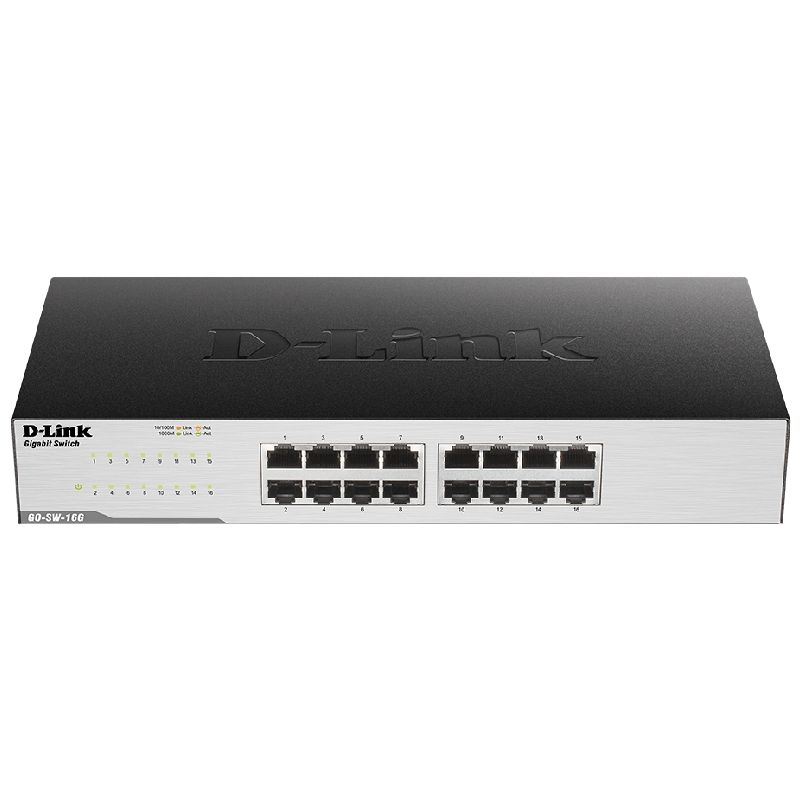

Switch D-Link GO-SW-16G 16 Puertos/ RJ-45 10/100/1000

Especificaciones técnicas
Físico
16 Gigabit Ethernet
Fanless design for silent operation
Rendimiento
IEEE 802.3x Flow Control
Auto MDI/MDI-X crossover for all ports
Full/half-duplex for Ethernet/Fast Ethernet speeds
Supports 9,216 Bytes Jumbo Frames
Eficiencia energética
Innovative D-Link Green Ethernet Technology conserves energy
Link status detection reduces power usage
Cable length detection uses energy more efficiently
802.3az EEE hardware implementation reduces power consumption significantly
RoHS compliant
Easy Installation
Plug-and-play installation saves you time
General
16 10/100/1000 Gigabit ports
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
Data Tranfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max)
EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max)
EIA/TIA-568 100-ohm STP (100 m max)
Funcionalidad
D-Link Green Features
IEEE 802.3az Energy Efficient Ethernet (EEE)
Link status detection power saving
Cable length detection power saving
LAN Features
Back pressure at half-duplex operation
Auto MDI/MDIX
Wire speed reception and transmission
Store-and-Forward switching method
8K MAC addresses
2 Mbits RAM for data buffering
Jumbo Frames: 9216 Bytes
Capacidad de conmutación
GO-SW-16G - 32 Gbps
Port Packet Filtering
10M: 14,880 pps
100M: 148,800 pps
1000M: 1,488,000 pps
LEDs
Power LED
GO-SW-16G - 16 Link/Activity/Speed LEDs (one per port)
Power Inputs
GO-SW-16G - Switching 12V/1A level V power adapter
Consumo
Power on (standby):
GO-SW-16G - AC input: 2.64 Watts
Power max.:
GO-SW-16G - AC input: 9.00 Watts
MTBF
GO-SW-16G - 319,267 hours
Dimensiones
GO-SW-16G - 280 x 126 x 46 mm
Peso
GO-SW-16G - 0.87 Kg
